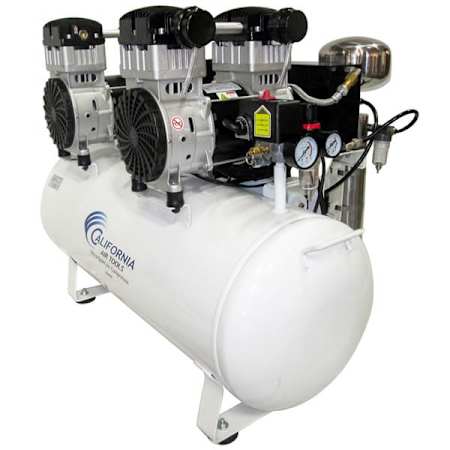

California Air Tools 4 HP 20 Gal 125 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor with 80% Dryer
Model: 20040DC|Item: bci5120651
$2,857.00
5 In Stock
Options
80% Dryer
None
$1,064.00
Auto-Drain
$1,269.00
80% Dryer
$2,857.00
80% Dryer and Auto-Drain
$2,951.00
98% Dryer and Auto-Drain
$3,591.00
Smart Con, 98% Dry, Auto-Drn
$4,550.00
Smart Controller
$1,450.00
Smart Control and Auto-Drain
$1,699.00
80% Dryer
Free Shipping!
Leaves the Warehouse in 2 to 3 business days
-Details
Product Information:
- Powerful 4-HP SP-Series 220-Volt 1-Phase Motor
- Low 1680 RPM creates less noise & wear
- 75 dBA is ideal for indoor use where noise is an issue
- Oil-Free Dual Piston Pump System
- 12.8 CFM @ 40 PSI; 10.6 CFM @ 90 PSI; 125 PSI maximum
- Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less
- Aftercooler Condenser: Heat exchanger cools the discharge air, condensation is pushed to dryer
- Air Dryer With Activated Alumina Desiccant: Activated Alumina has a 4000 hour service life; protects tools & machinery
- 20 Gallon Steel Air Tank: Just the right size for shop or garage
- Designed For Increased Duty Cycles & Run Times
- Time to fill tank from empty to full - 150 Seconds
- Recovery time from 95 PSI to 125 PSI - 40 Seconds
- Top Mounted Controls & Condor Pressure Switch
- Dual gauges so you can check tank & tool pressure at a glance
- 1/4" air outlet with quick connector for fast tool changes
- Thermal Overload Protector: 14 Amp low amp draw works on NEMA 6-15P outlets
Specifications:
- Fuel Type: Electric
- Height: 28"
- Width: 25"
- Length: 39"
- Product Weight: 175 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Air Dryer Included
- Pressure Gauge Included
- Pressure Regulator Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 20
Pump Specifications:
- After Cooler Included
- Lubrication Type: Oil Free
- CFM: 11
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 4 HP
- Amperage: 14A
- dB Rating: 75
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 10.6 |
Height | 28 in. |
Length | 39 in. |
Product Weight | 175 lbs. |
Width | 25 in. |
Dimensions and Measurements
CFM | 10.6 |
Height | 28 in. |
Length | 39 in. |
Product Weight | 175 lbs. |
Width | 25 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | Yes |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Stationary |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | Yes |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Stationary |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 14 |
Decibels | 75 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 4 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 14 |
Decibels | 75 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 4 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
