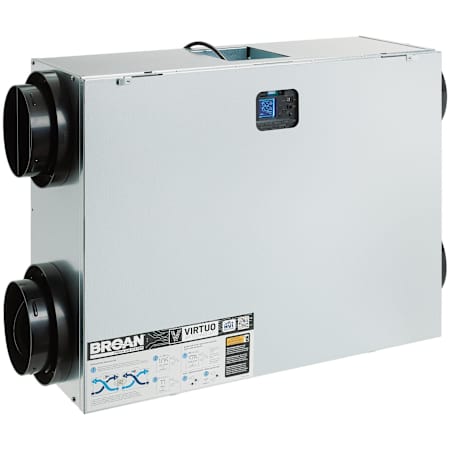

Broan Broan One Plug-in Energy Recovery Ventilator (ERV) Galvanized Steel
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Broan Broan One Plug-in Energy Recovery Ventilator (ERV) Galvanized Steel
Alternate Image
Alternate Image
Alternate Image
Alternate Image

Broan Broan One Plug-in Energy Recovery Ventilator (ERV)

Model: BLP150E75NS-PC
|
Item: bci4868709

$929.00
Finish: Galvanized Steel -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

The industry’s most versatile and advanced fresh air system, created to simplify the design, specification, and installation process while delivering superior air quality in a low-profile design. Featuring the quickest installation in its category, saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology. The airflow configuration can be swapped with the flip of an integrated selection switch, eliminating the need to specify different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes. The integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range, providing real-time CFM and watt usage values. Horizontal and wall mount options provide location flexibility to accommodate various application needs. Hardwired model is also available -- Model BLP150E75NS-HW Available only in the US.

Features:

  • Performance guaranteed from installation to inspection with TrueCFM™
  • Broan One uses proprietary VIRTUO™ Technology to continually self-adjust and remain in balance
  • Airflow configuration can be swapped with the flip of an integrated selection switch
  • Broan One solution to meet your application needs. Specify, install, stock and maintain one ERV
  • Quickest installation in its category saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology
  • Equipped with powerful and energy efficient ECM PMSM motors delivering up to 155 CFM @ 0.2" w.g.
Additional Broan Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

CFM
155, 150
CFM (High)
155
Depth
32 in.
Duct Size
6" Round
Height
9.97 in.
Product Weight
39 lbs.
Width
20.94 in.

Dimensions and Measurements

CFM
155, 150
CFM (High)
155
Depth
32 in.
Duct Size
6" Round
Height
9.97 in.
Product Weight
39 lbs.
Width
20.94 in.

Included Components

Ductless
No

Included Components

Ductless
No

Characteristics and Features

Air Filter Type
MERV 8, Washable Air Filters
Balanced Ventilation
Yes
Duct Discharge
Horizontal
Fresh Air
Yes
Humidity Sensing
No
Installation Type
Ceiling Mounted, Wall Mounted
Material
Galvanized Steel

Characteristics and Features

Air Filter Type
MERV 8, Washable Air Filters
Balanced Ventilation
Yes
Duct Discharge
Horizontal
Fresh Air
Yes
Humidity Sensing
No
Installation Type
Ceiling Mounted, Wall Mounted
Material
Galvanized Steel

Electrical and Operational Information

Amperage
1.41
Energy Recovery
Yes
Heat Recovery
No
Power Source
Plug-In
Speeds
6
Voltage
120
Wattage
170

Electrical and Operational Information

Amperage
1.41
Energy Recovery
Yes
Heat Recovery
No
Power Source
Plug-In
Speeds
6
Voltage
120
Wattage
170

Warranty and Product Information

Approved for Commercial Use
No
Certifications
CSA, UL
Collection
Broan One
Country Of Origin
Canada
Fire Rated
No
HEPA
No
Manufacturer Warranty
5 Years, 5 Year
Title 20 Compliant
No
Title 24
No

Warranty and Product Information

Approved for Commercial Use
No
Certifications
CSA, UL
Collection
Broan One
Country Of Origin
Canada
Fire Rated
No
HEPA
No
Manufacturer Warranty
5 Years, 5 Year
Title 20 Compliant
No
Title 24
No
