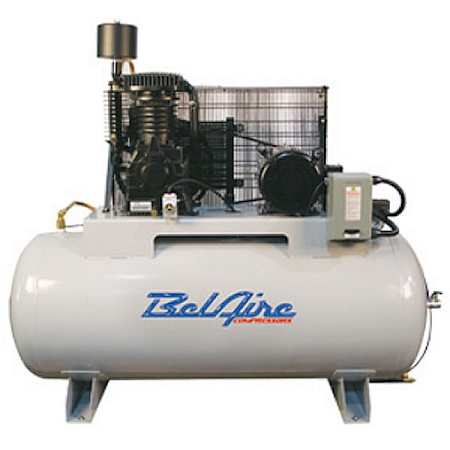

BelAire Compressors 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank

Product Information:

• Solid Cast Iron Cylinder 2 Stage Pump
  • Delivers 18.5 CFM at 100 PSI
  • Rugged components provide long-lasting dependability


• Start / Stop Pressure Switch Controls: Save time & energy


• ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure


• 2 Year Bumper To Bumper Factory Warranty: No additional purchase necessary


• Fully Enclosed High-Flow Belt Guard: Protects the belt & the operator


• Manual Air Tank Drain: Makes tank simple to maintain


• 460 Volt Three Phase Power
  • Easily wires into your 460V-3 system
  • CPXHT25 dryer recommended (not included)



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 49"
• Width: 24"
• Length: 71"
• Product Weight: 471 lbs
• Warranty: 2 Year Commercial and 2 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 19
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Voltage: 460V
• Voltage: 460V
