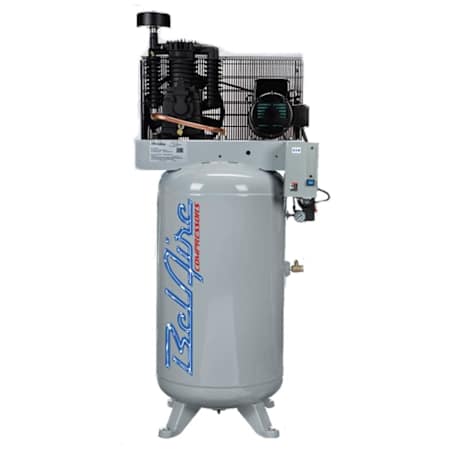

BelAire Compressors 7.5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor with Vertical Tank and Magnetic Starter

Product Information:

• Two-Stage Hybrid Pump: Designed for superior quality & extends the life of the pump


• Compact Design: Ideal for work environments where space is a premium


• 7.5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included: Saves $$$, No need to purchase additional starter


• 80-Gallon ASME Certified Vertical Air Tank: 100% factory tested at full pressure


• High Flow Belt Guard: Fully enclosed design provides added safety


• Oil Level Sight Glass: Easily check the oil level at any time


• Start-Stop Pressure Switch Control: Saves time and energy


• Stainless Steel Valves
  • Extends the life of the compressor
  • 3/4" air outlet works with many systems


• 2 Year Factory Warranty: Protects your investment

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 73"
• Width: 24"
• Length: 39"
• Product Weight: 479 lbs
• Warranty: 2 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 25
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Voltage: 208, 230V
• Voltage: 208, 230V
