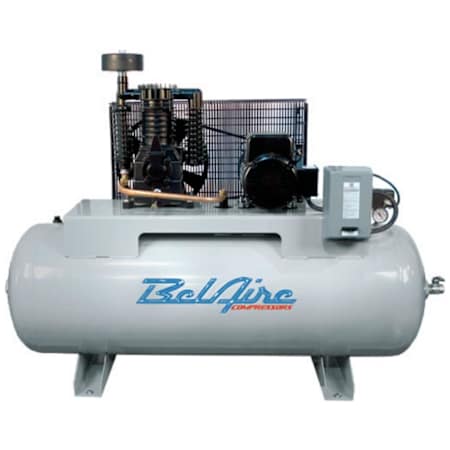

BelAire Compressors 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor with Horizontal Tank
Model: 318H|Item: bci5120963
Details
Product Information:
- Two-Stage Pump: Designed for superior quality & extends the life of the pump
- Compact Design: Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V): Can be wired for either voltage
- 80-Gallon ASME Certified Horizontal Air Tank: 100% factory tested at full pressure
- High Flow Belt Guard: Fully enclosed design provides added safety
- Oil Level Sight Glass: Easily check the oil level at any time
- Start-Stop Pressure Switch Control: Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 3/4" Outlet
- 2 Year Full Warranty: Magnetic starter 0000052006 sold separately
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 49"
- Width: 24"
- Length: 71"
- Product Weight: 491 lbs
- Warranty: 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 19
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 18.5 |
Height | 49 in. |
Length | 71 in. |
Product Weight | 491 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 18.5 |
Height | 49 in. |
Length | 71 in. |
Product Weight | 491 lbs. |
Width | 24 in. |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Residential |
