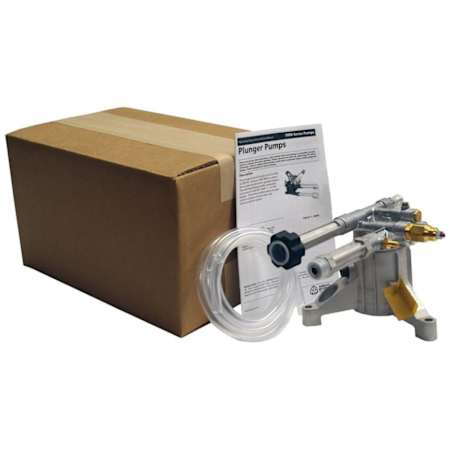

AR North America SRMW 2800 PSI 2.4 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump Kit

Product Information:

• High Quality Replacement For Worn Out Pumps
  • Fits many homeowner-type pressure washers
  • Save money by replacing the pump instead of buying a new power washer


• Direct Drive Vertical Axial Replacement Pump
  • Built-in brass unloader relieves and pressure control valve
  • Aluminum pump head is sturdy and long-lasting; resists corrosion
  • Constructed with frictionless aluminum connecting rods and pistons


• Thermal Relief Valve (TPP140-1/4A)
  • Protects the pump from overheating while in bypass mode
  • Releases small amounts of hot water and intakes cooler water to extend pump life


• Maintenance-Free Crankcase: Prefilled with oil and sealed for simple installation, no oil changes


• Includes Siphon Hose with Filter
  • Draws chemicals or soap into the water stream after the pump
  • Allows a wide variety of chemicals to be used without harming your pump


• Standard SAE Gas Engine Flange
  • SAE standard bolt pattern fits most gas-powered pressure washers
  • Designed for gas-powered pressure washers with horizontal engines


• 7/8” Hollow Shaft Handles 3400 RPM
  • Power EBHP 4.6
  • Oil capacity 2.2 ounces
  • Max Temperature 140° F
  • Plunger bore 12mm, plunger stroke 9mm
  • Water inlet 3/4" Female garden hose; outlet: 22mm Male thread


• Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • (Dimensions on the spec sheet download under the Specs tab)
  • Pump ships bare so you'll need to re-use your connectors or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:


• 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***



Specifications:

• Grade: Consumer
• Fuel Type: Gas

Dimensions:

• Height: 8-1/8"
• Width: 10-1/2"
• Length: 5-11/16"
• Product Weight: 7.3 lbs
• Outflow Connection: 22m Threaded (Male)
