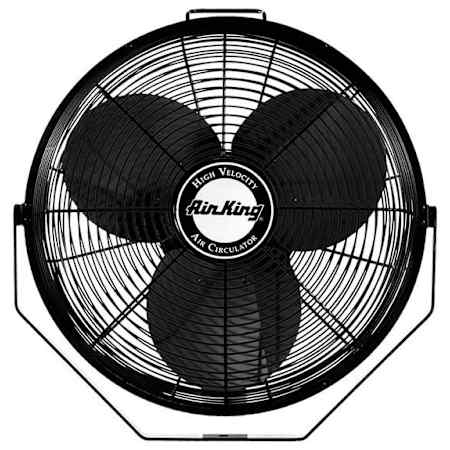

Air King 12 Inch Wide 1010-1360 CFM 3-Speed Wall Mounted Fan
Model: 9312|Item: bci441382
Details
Large, open spaces often require a fan with a little extra strength when it comes to air circulation. The Air King 9312 is an industrial grade 12-inch multi-mount fan that features three speed settings, ranging from 1010 CFM to an impressive 1360 CFM, powder coated steel blades, and a powder coated steel grille. The 9312 includes a pull cord speed control. It also includes a pivoting head within a multi-mount bracket that can be mounted in virtually any application. This low maintenance fan is ideal for gyms, auditoriums, churches, and many industrial applications.
Product Information:
- Powerful Circulation: The Air King 9312 includes a 3-speed motor with the ability to circulate air up to 1360 CFM. With a pivoting head, it can disperse airflow throughout a room in any direction of your choosing
- Durability: The Air King 9312 is built tough. It features durable powder coated steel grilles, blades, and mounts
- Multi-Mount Capability: With the included multi-mount brackets, the 9312 can be mounted on ceilings, walls, I-beams, and more, making these fans perfect for industrial areas where floor and table space is limited
- Warranty: Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product
Features:
- Equipped with 3 speeds and easy to use pull cord controls
- 1010 and 1360 CFM and 1500 RPM circulates air fast, ensuring a constant, cool and comfortable environment
- UL listed
- Covered under a 1 year manufacturer warranty
Specifications:
- CFM: 1010, 1360
- RPM: 1500
- Fan Speeds: 3
- Control Type: Pull Cord
- Installation Type: Ceiling, I Beam Mount, Wall
- Compliance: UL, OSHA
- Height: 15"
- Width: 12"
- Voltage: 120V
Dimensions and Measurements
Blade Span | 12 in. |
CFM | 1010, 1360 |
Cord Length | 9 ft. |
Height | 15 in. |
Product Weight | 11.5 lbs. |
Width | 12 in. |
Dimensions and Measurements
Blade Span | 12 in. |
CFM | 1010, 1360 |
Cord Length | 9 ft. |
Height | 15 in. |
Product Weight | 11.5 lbs. |
Width | 12 in. |
Characteristics and Features
Control Type | Pull Cord |
Installation Type | Ceiling, I Beam Mount, Wall |
Material | Steel |
Characteristics and Features
Control Type | Pull Cord |
Installation Type | Ceiling, I Beam Mount, Wall |
Material | Steel |
Electrical and Operational Information
Amperage | 0.74 |
dBA (Low) | 42 |
dBA (Med) | 49 |
Decibels (High) | 56 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Horsepower | 0.04 |
RPM | 1500 |
RPM (High) | 1545 |
RPM (Low) | 900 |
Voltage | 120 |
Wattage | 84 |
Watts (low) | 64 |
Watts (med) | 76 |
Electrical and Operational Information
Amperage | 0.74 |
dBA (Low) | 42 |
dBA (Med) | 49 |
Decibels (High) | 56 |
Fan Speeds | 3 |
Frequency | 60 Hertz |
Horsepower | 0.04 |
RPM | 1500 |
RPM (High) | 1545 |
RPM (Low) | 900 |
Voltage | 120 |
Wattage | 84 |
Watts (low) | 64 |
Watts (med) | 76 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Industrial Grade Multi Mount Fans |
Country Of Origin | USA |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
OSHA Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Industrial Grade Multi Mount Fans |
Country Of Origin | USA |
Location Rating | Dry Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
OSHA Compliant | Yes |
