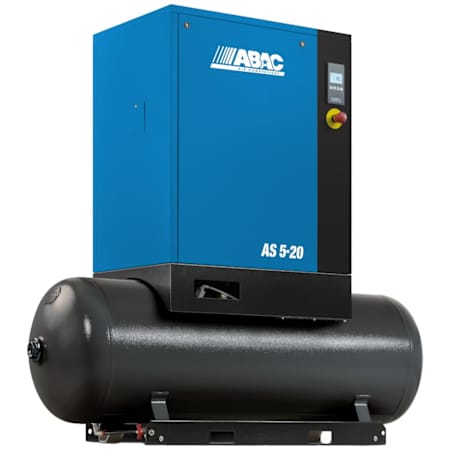

ABAC Air Compressors 5 HP 71 Gal 150 Max PSI Stationary Electric (230 Volt) Rotary Air Compressor

Product Information:

• ABAC AS-B Series - 5 HP Tank-Mounted Rotary Screw Air Compressor
  • Ideal for automotive and industrial applications
  • Provides superior performance, efficiency, and reliability


• 2-In-1 System - Compressor & Receiver: Tank-mounted design allows for a compact foot print

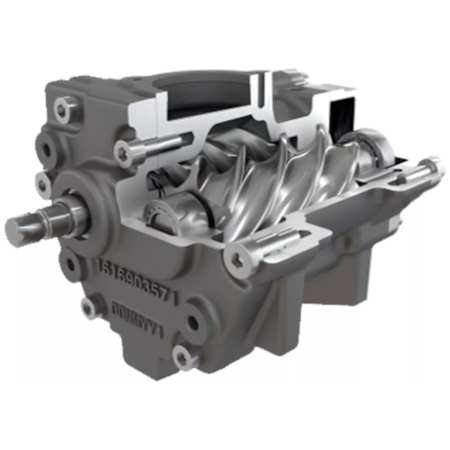

• C43i Rotary Air End
  • 17.4 CFM @ 100 PSI (150 Max PSI); 100% Duty Cycle
  • Oil-injected, belt-driven design for low noise and vibration regardless of RPM


• Integrated Block (IB) Design
  • Minimum parts, internally casted channels & integrated valves / fittings
  • Robust, hose-less, single piece compression and separation system
  • Allows for highly reliable operation and eliminates possibility of leaks


• High-Density Aluminum Block
  • Provides less porosity to provide a stable film on the surface
  • Decreases the risk of corrosion for longer compressor life


• Spin-On Vertical Oil Separation
  • Efficient, eco-friendly design provides superior separation
  • Helps minimize risk of damage to tools and equipment


• 5 HP IE3 Electric Motor (230-Volt - Single-Phase)
  • Energy efficient design helps to reduce power consumption and CO2 levels
  • Fan-cooled, can operate at ambient temperatures up to 115°F (46°C)

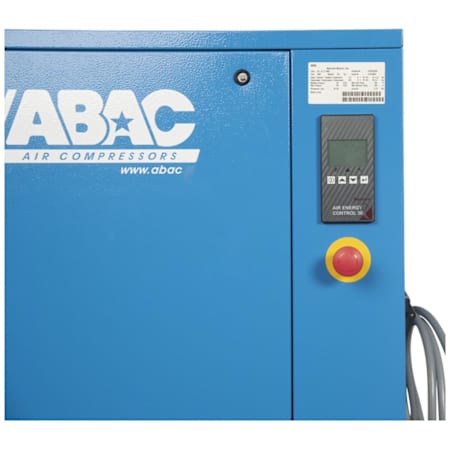

• Air Energy Control - Basic Digital Controller
  • Remote Start / Stop and Automatic Restart
  • Running and loaded hours


• Sound Attenuated Cabinet: Quiet Operation - As low as 63 dB(A)


• 71-Gallon ASME Air Receiver
  • Easily accessible tap for condensate drain
  • Forklift pockets in base structure for safer lifting


• Compact Design - 56"(L) x 23" (W) x 55" (H): Allows you to use this compressor in a wide variety of locations


• Warranty: 12-Months From Start-Up Or 18-Months From Ship Date (1st To Occur)

Specifications:

• Fuel Type: Electric
• Height: 55"
• Width: 23"
• Length: 56"
• Product Weight: 485 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 71

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Lubrication Type: Oil Lubricated
• CFM: 17
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 30A
• dB Rating: 63
• Voltage: 230V
