AAA AAA Fully Plumbed 3200 PSI 2.8 GPM (3/4" Shaft) Triplex Pressure Washer Pump Kit w/ PowerBoost

Model: 90036 - Additional Model Number 530009

Product Information:

• Direct Drive Horizontal Triplex Plunger Replacement Pump
  • Fits many brands and models up to 3200 PSI and 2.8 GPM
  • Save money by replacing the pump instead of buying a new power washer


• PowerBoost Technology
  • Delivers higher pressure at the nozzle for a more efficient cleaning
  • Adjustable unloader knob lets you choose pressure at your convenience

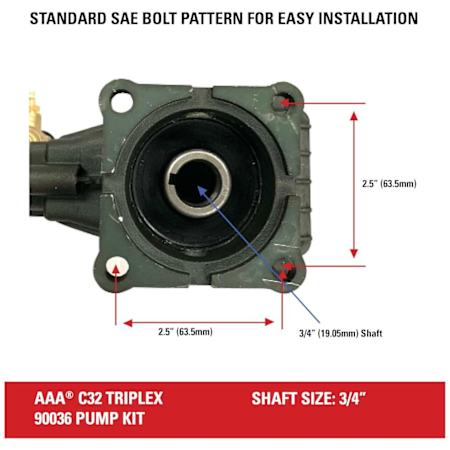

• 3/4" Shaft & SAE Gas Engine Flange
  • Hi/Low accurate lock adjustment system & anti-rotation pin
  • Designed for gas-powered pressure washers with horizontal engines


• Brass Pump Head w/ Polished Ceramic-Coated Pistons
  • Sturdy forged brass manifold resists corrosion
  • Runs cooler, lasts longer; thermal relief protects the pump


• Fully Anodized Black Die-Cast Aluminum Crankcase
  • Pre-sealed and pre-filled with oil in the pump for easy maintenance
  • Oil sight glass & oil seal technology eliminates the need for a dipstick


• Dual Oversize Radial Ball Bearings & Polished Steel Pistons
  • Better wear and friction resistance extends seal life
  • Stainless steel integrated unloader featuring easy-start system


• Threaded M22 Pump Outlet & 3/4" Garden Hose Inlet: Check your pressure washer's inlet and outlet orientation to ensure compatibility


• Complete Kit With 5 Year Consumer-Use Factory Warranty
  • Includes detergent siphon tube for soap application

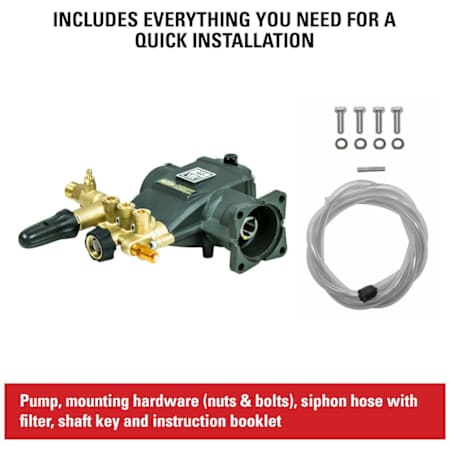

  • New mounting bolts, 3/16" shaft key for a tight connection & instruction manual


• Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee for returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions

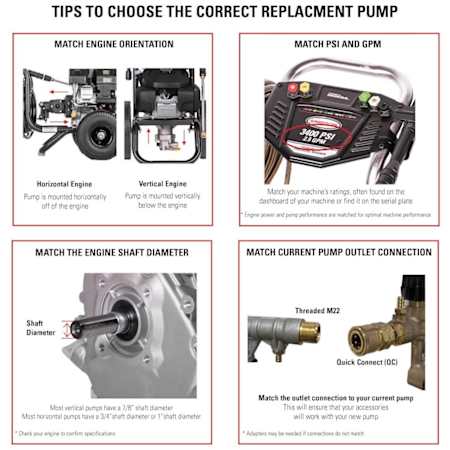

• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Consumer

Dimensions:

• Height: 4"
• Width: 9"
• Length: 12"
• Product Weight: 9 lbs
• Outflow Connection: 22m Threaded (Male)
